new Velleman K8055N USB Experiment Interface Board (New Vers.)

06601BAUXXB0088I0OEI

Product From USA

new | Velleman K8055N USB Experiment Interface Board (New Vers.)

06601BAUXXB0088I0OEI

Velleman

Free Delivery

7 days Replacement

Manufacturers Warranty

Top Brand

Blue Dart Delivered

Secure Transaction

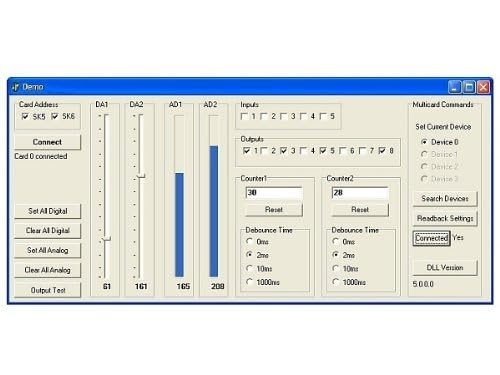

DIAGNOSTIC / TEST SOFTWARE:

separate output / input test

clear all / set all function

counter function on inputs 1 and 2 with adjustable debounce (max 20kHz depends on total I/O load)

analog output set sliders

analog input bar-graph indication

minimum system requirements:

1 GHz or faster 32-bit (x86) or 64-bit (x64) processor

#1299 in Prototyping Boards & Accessories

#718258 in Industrial & Scientific

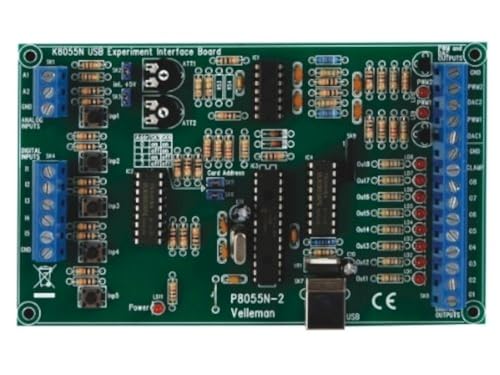

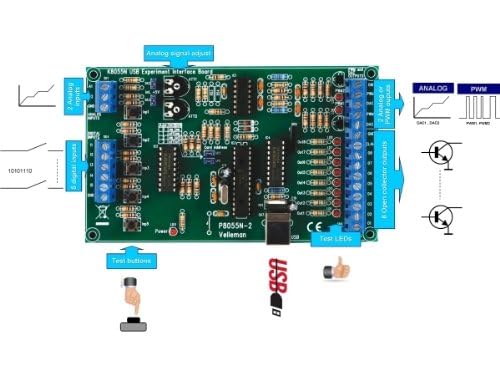

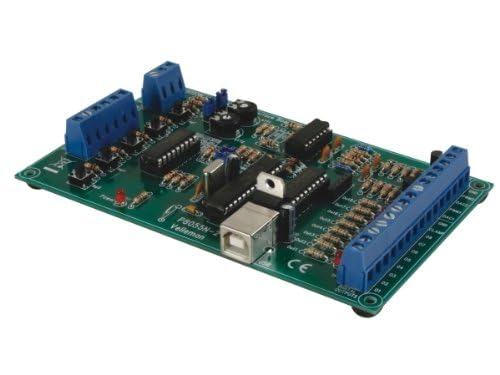

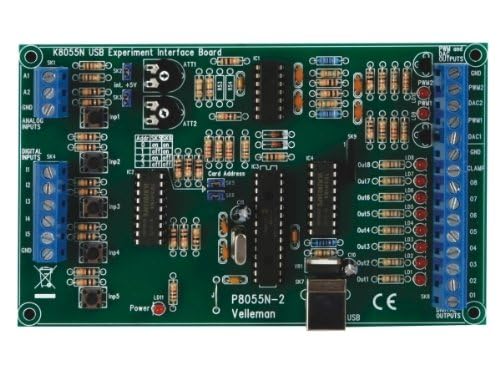

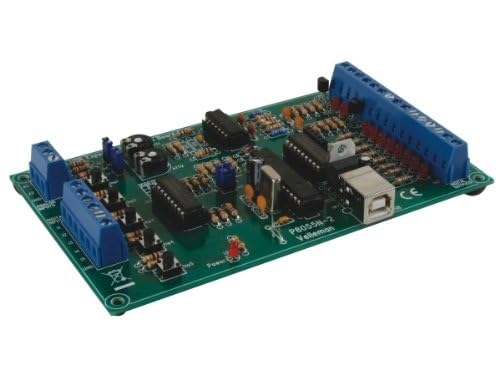

USB EXPERIMENT INTERFACE BOARD. The K8055N interface board has 5 digital input channels and 8 digital output channels. In addition, there are two analogue inputs and two analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC's USB connectors. All communication routines are contained in a Dynamic Link Library (DLL). You may write custom Windows (XP, Vista, Windows7) applications in Delphi, Visual Basic, C++ Builder or any other 32-bit Windows application development tool that supports calls to a DLL. Source code examples for Visual Basic, Visual C++, Visual C#, Excel, Delphi and Borland C++ builder are available. THIS IS AN ELECTRONIC KIT AND REQUIRES ASSEMBLY

Condition new
Asin B0088I0OEI
Category Industrial & Scientific
Subcategory Prototyping Boards & Accessories
Leafcategory BISS Basic
MPN K8055N
Origin USA

Condition	new
Asin	B0088I0OEI
Category	Industrial & Scientific
Subcategory	Prototyping Boards & Accessories
Leafcategory	BISS Basic
MPN	K8055N
Origin	USA

Brandname Velleman
Height 1.5
Length 6.5
Width 6.3
Weight 1
Operating System Windows XP

Brandname	Velleman
Height	1.5
Length	6.5
Width	6.3
Weight	1
Operating System	Windows XP
