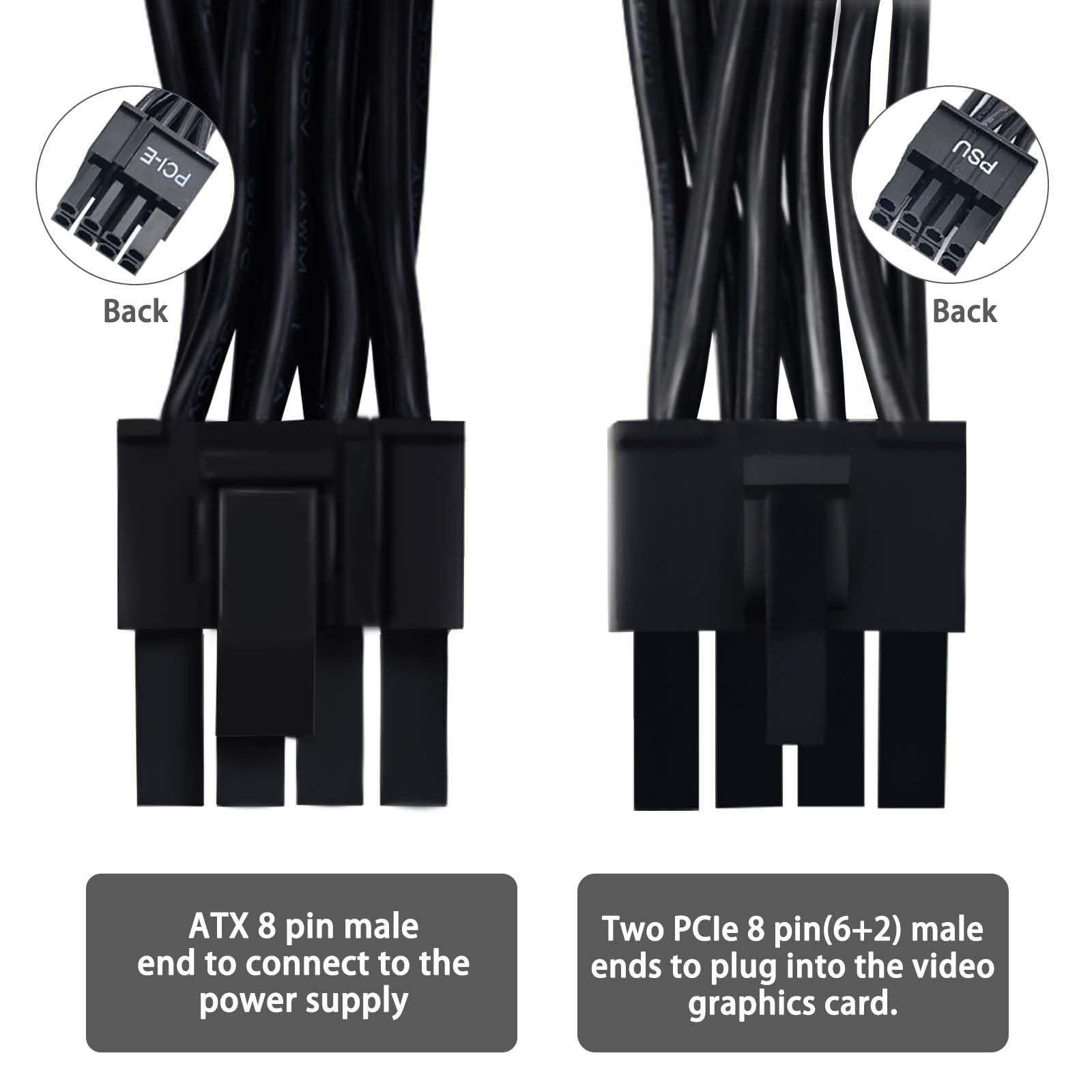

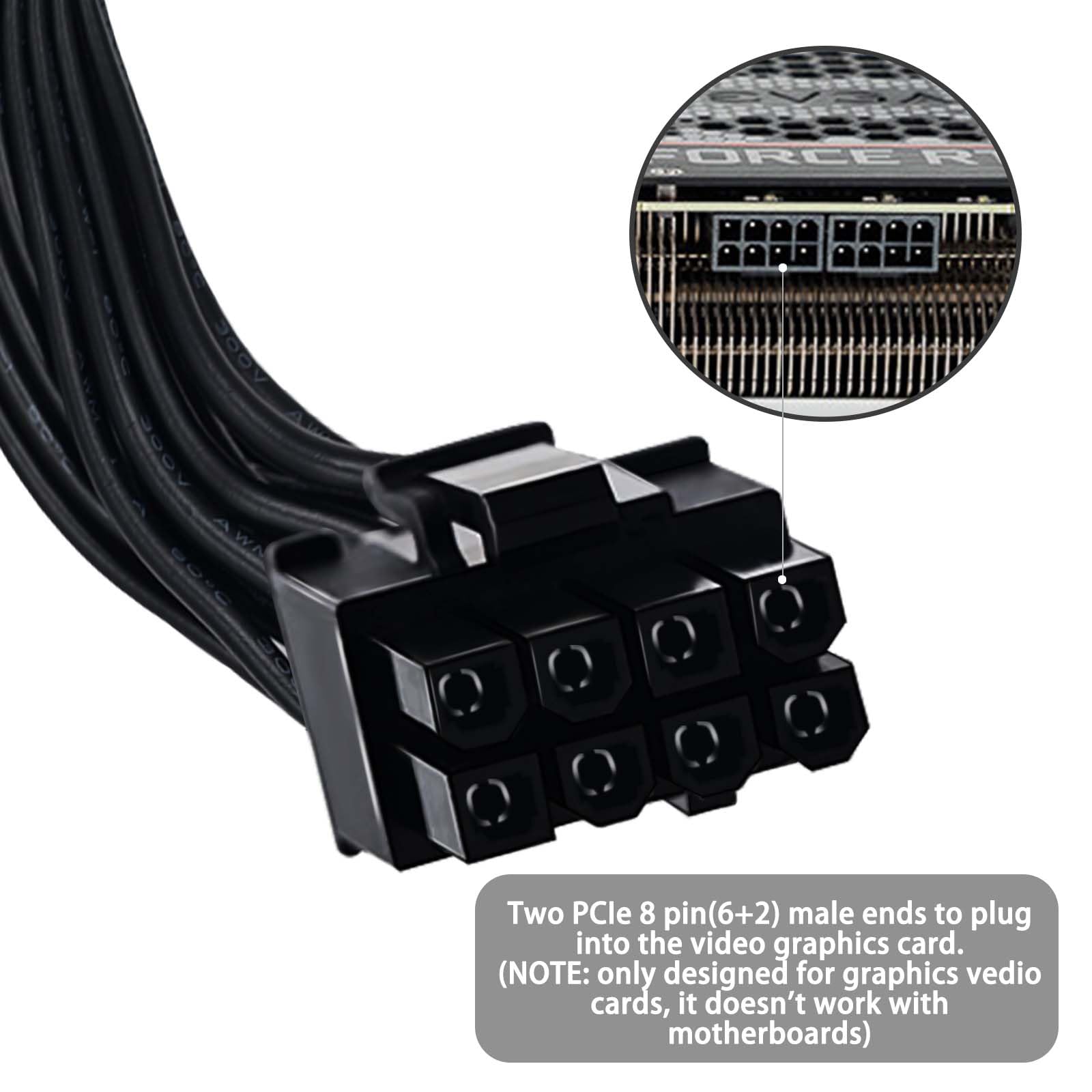

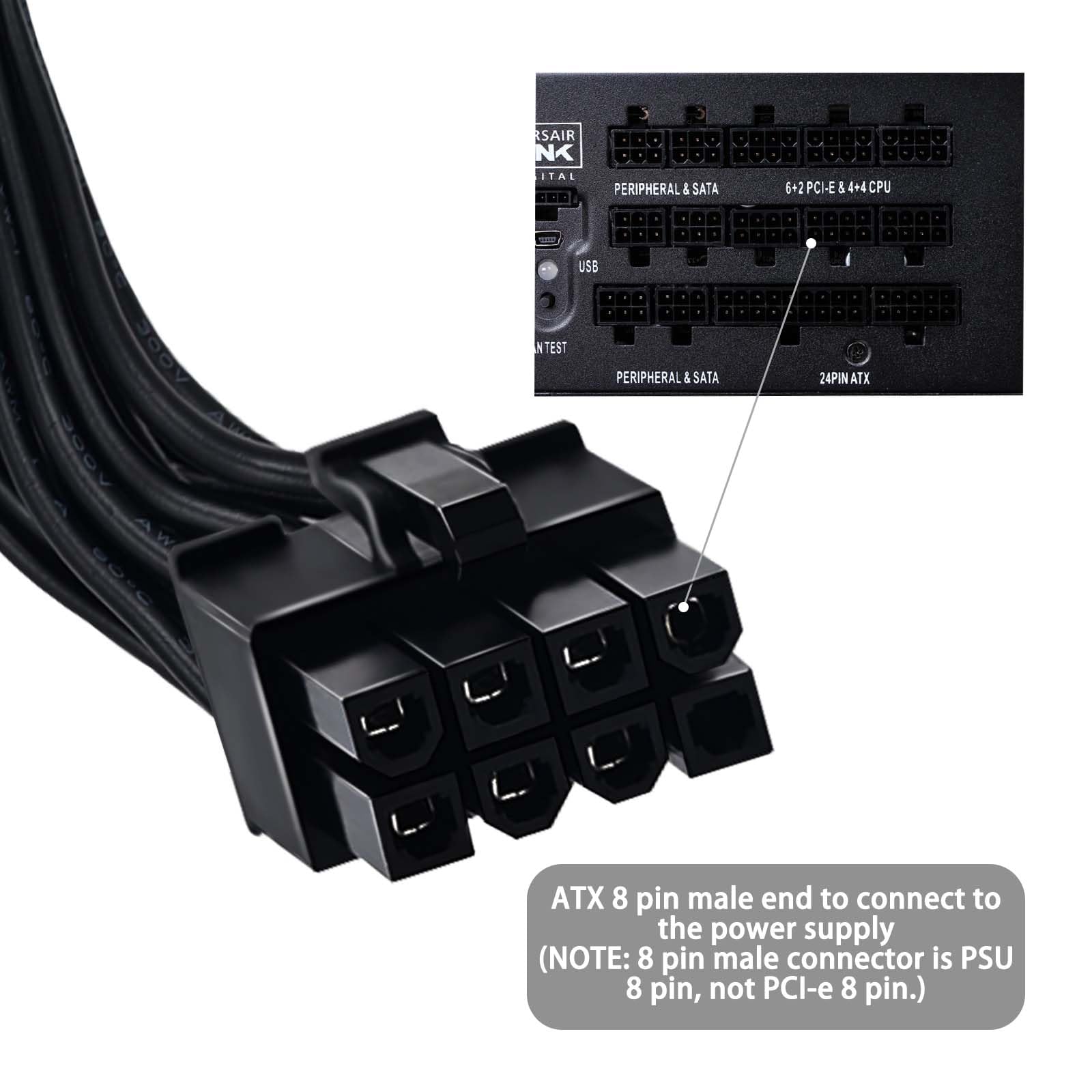

『CPU 8P - Dual 8P(6+2)』ATX 8 pin male end to connect to the power supply (NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin.) and two PCIe 8 pin(6+2) male ends to plug into the video graphics card.(NOTE: the 8 pin end and two 8 pin(6+2) male ends cannot be used interchangeably);

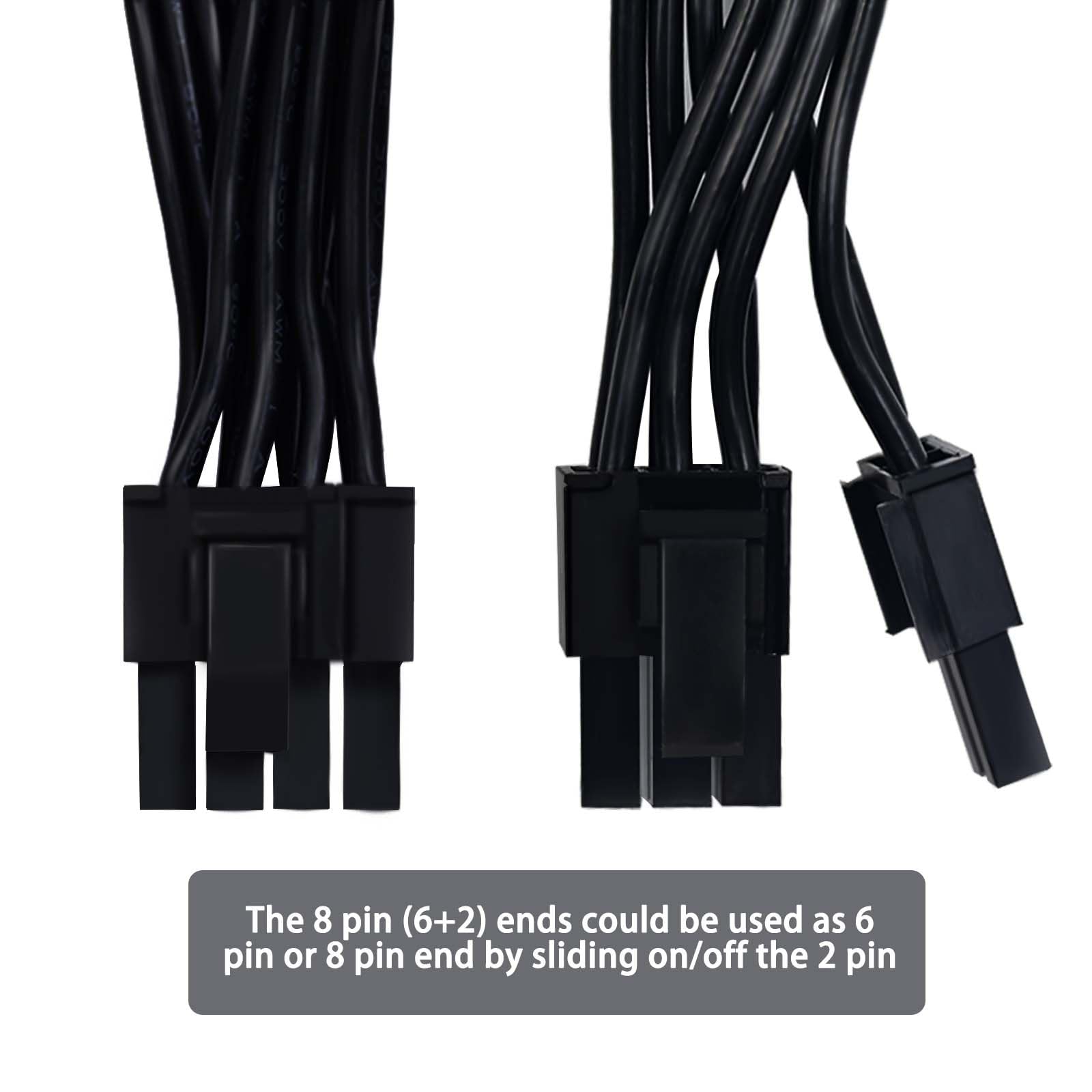

『Only designed for graphics vedio cards, it doesn't work with motherboards』Compatible with 6-pin & 8-pin graphics cards from popular manufacturers such as: ASUS, ASRock, Gigabyte, Radeon, Sapphire, NVIDIA Tesla GPU, etc. (The 8 pin (6+2) ends could be used as 6 pin or 8 pin end by sliding on/off the 2 pin.);
『Compatibility』ONLY compatible with Corsair RM/RMX/RMi/HX/HXi/AX/AXi/SF/TX/TX-M/CS/CS-M/CX/CX-M series,Greatwall BTX-650SD/750SD/1000SD/EPS 1250DA/1560DA, Cougar CMX400W/450W/CX series/GX800W/GX600W/GX1050W,Antec Neo Eco 400M/650M/550M, Tt smart SE530/SE730, Thermaltake toughpower xt platinum 1275W/775W, OCZ 500M/700M XSP series, OCZ 700w mod x stream-pro;(NOTE: Do not work with AX1200.)

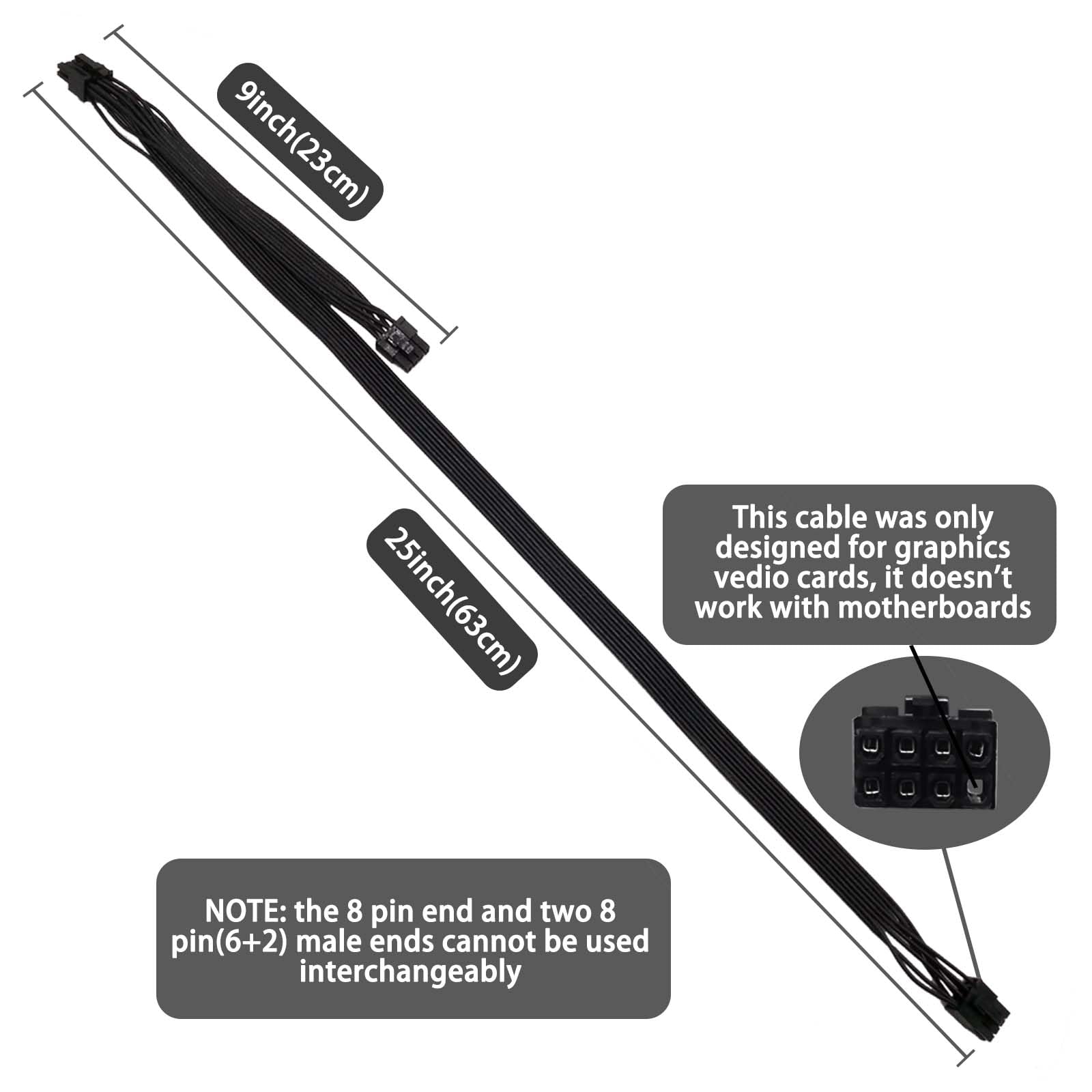

『Parameter』Length(including connectors): 25-inch + 9-inch(63cm+23cm), Gauge: 1007-18AWG(standard tin-coating copper wire), Quantity: 1pcs, Self-adhesive tape*1pcs (only designed for graphics vedio cards, it will not work with motherboards);
『Note』This cable was only designed for the brand and model as listed in the 3rd Point. If you use other incompatible brand PSUs or types, it will definitely burn or damage the PSUs or graphics cards and we won’t take any responsibility for wrongly using or installing. Please carefully check the compatible types or contact us if you are not sure if it supports your power supply;
Product From USA
