AMD Xilinx VU9P VU13P FPGA Development Board DDR4 PCIe Gen3 QSFP28 FMC 100G for High-Performance Computing (PZ-VU13P-KFB, High Speed ADC Package)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

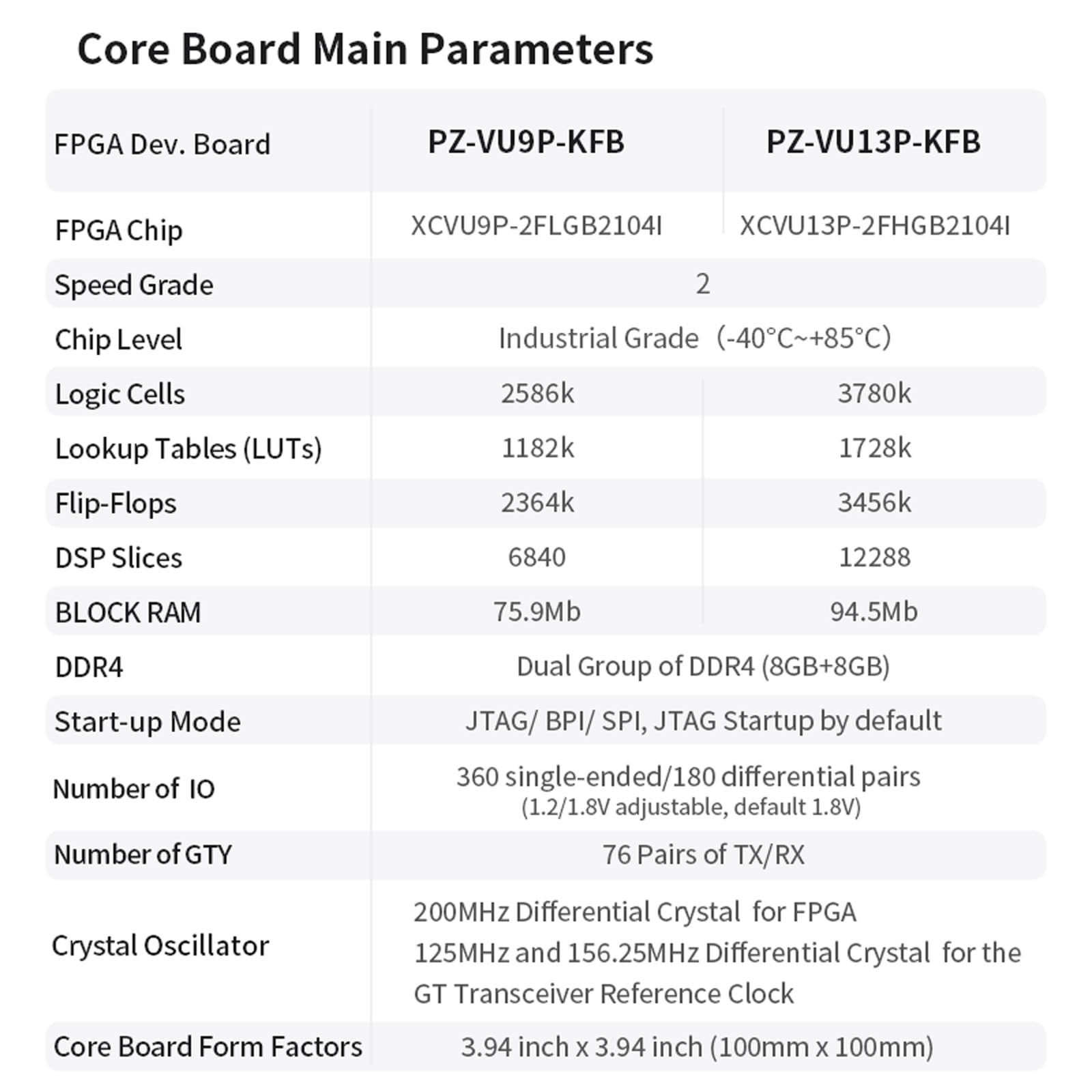

•High-End Xilinx FPGA Core:Features XCVU9P-2FLGB2104I or XCVU13P-2FHGB2104I industrial-grade chips with up to 3.78 million logic cells, 12,288 DSP slices, and 94.5Mb block RAM.

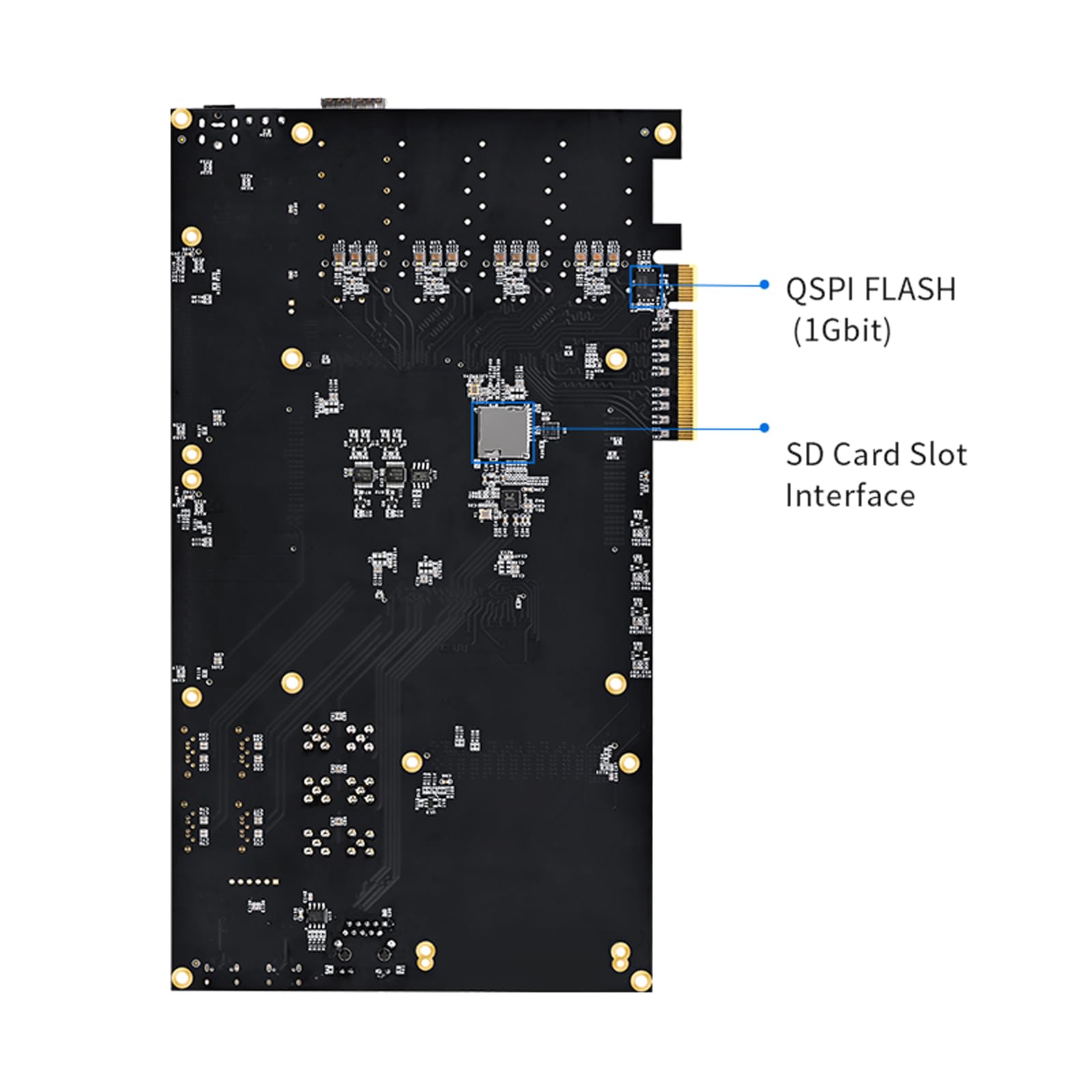

•Robust Memory Architecture:Dual-bank DDR4 (8GB + 8GB), dual QSPI Flash, and efficient memory access ideal for data-intensive applications like 5G, HPC, and AI.

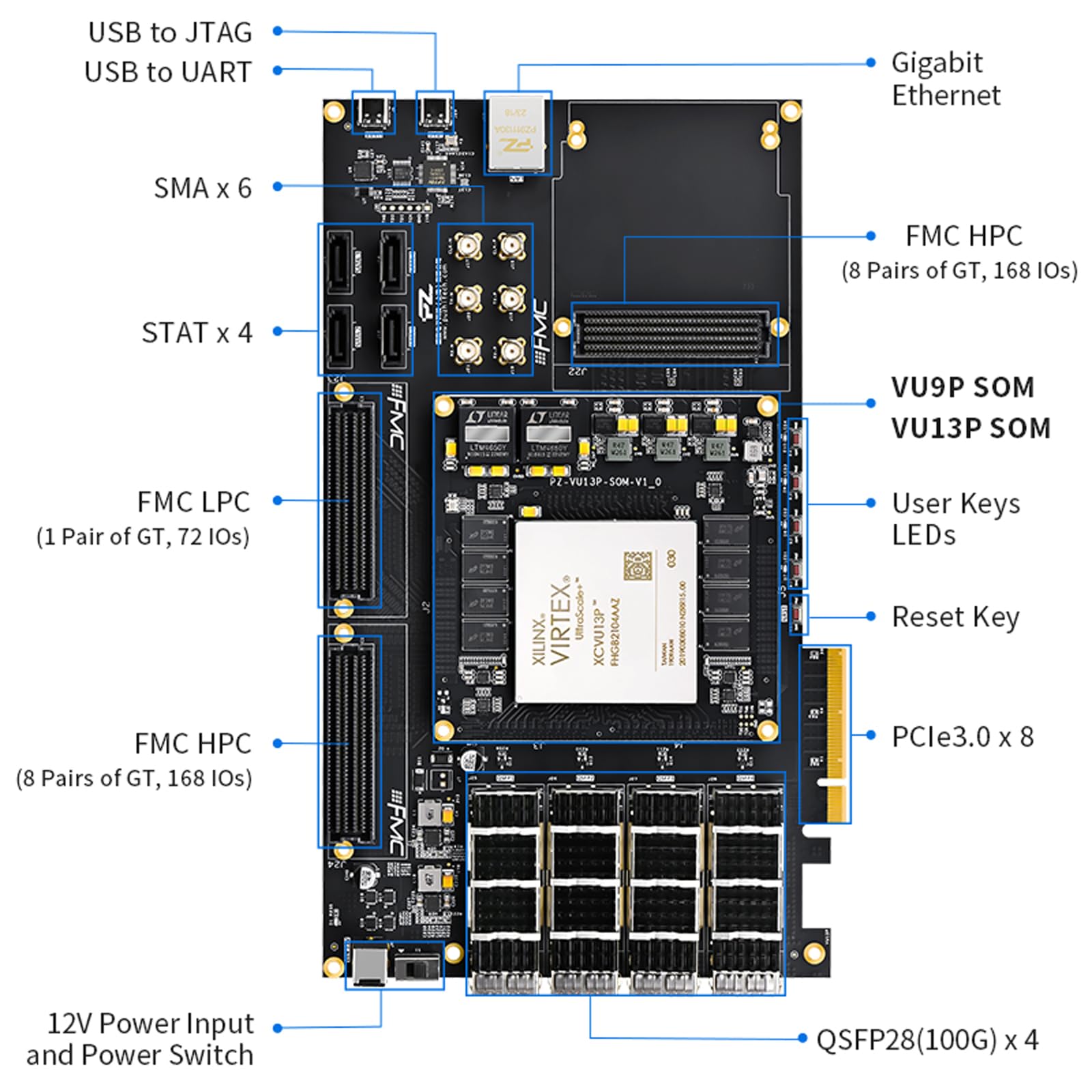

•Flexible Expansion with FMC & QSFP28:Includes 2×FMC HPC, 1×FMC LPC, and 4×QSFP28 ports (4×100G), enabling high-speed optical and digital signal expansion in real-time systems.

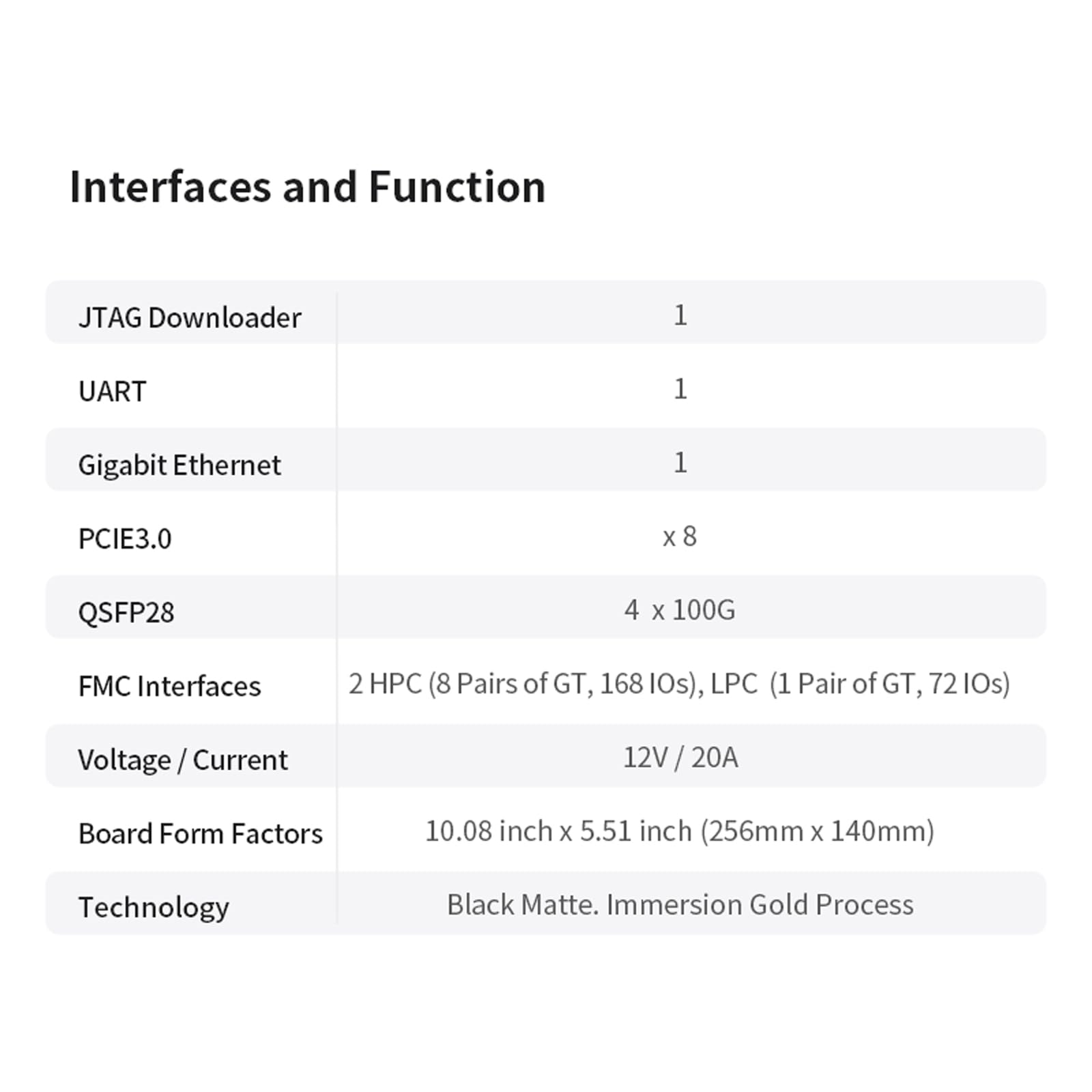

•Rich Interfaces for System Integration:Offers PCIe Gen3 x8, Gigabit Ethernet, USB to JTAG/UART, SMA inputs, STAT indicators, user buttons, and reset—all on a compact 256×140mm PCB.
•Industrial-Grade Reliability:Operates from -40°C to +85°C with black matte PCB and immersion gold process—engineered for harsh environments and critical applications.
