Buyohlic 4"/ 100 mm Regular Rotary Milling Table With Small Chucks with 65 mm 3 Jaws Self Centering Chuck
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Use of product- A rotary table is used to rotate a workpiece precisely during machining, allowing for accurate creation of circular features, angles, and indexing tasks. A chuck is used to securely hold and grip a workpiece on a machine tool, ensuring it remains stable and aligned during operations like turning, drilling, or milling.

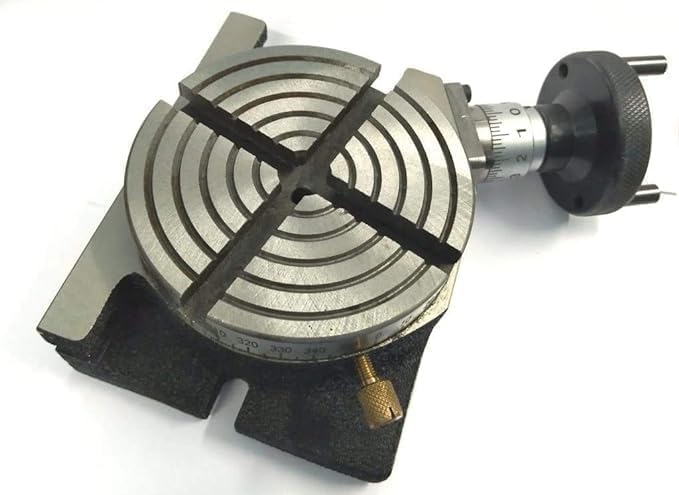

•4"/ 100 mm Rotary Table Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position.

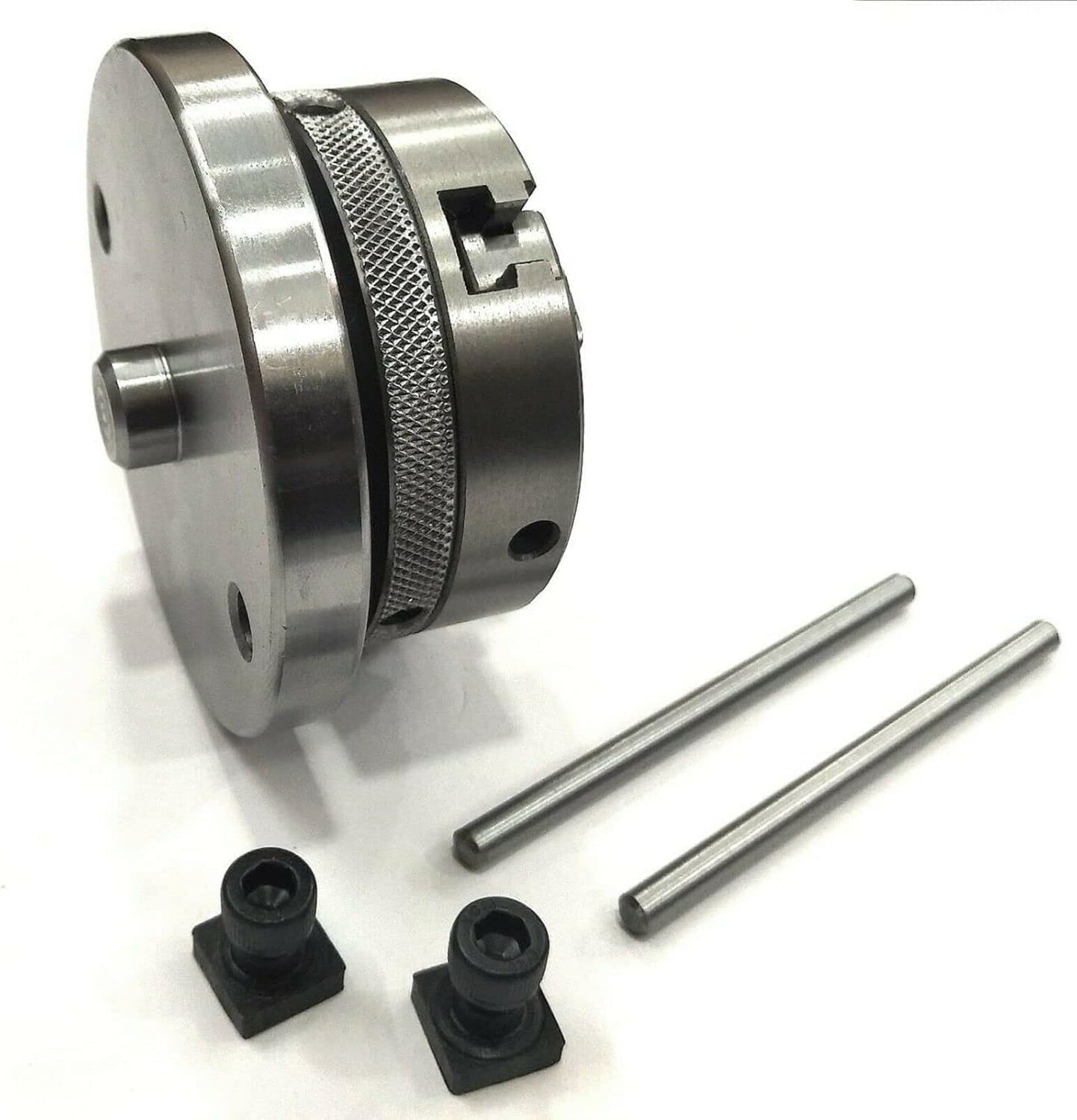

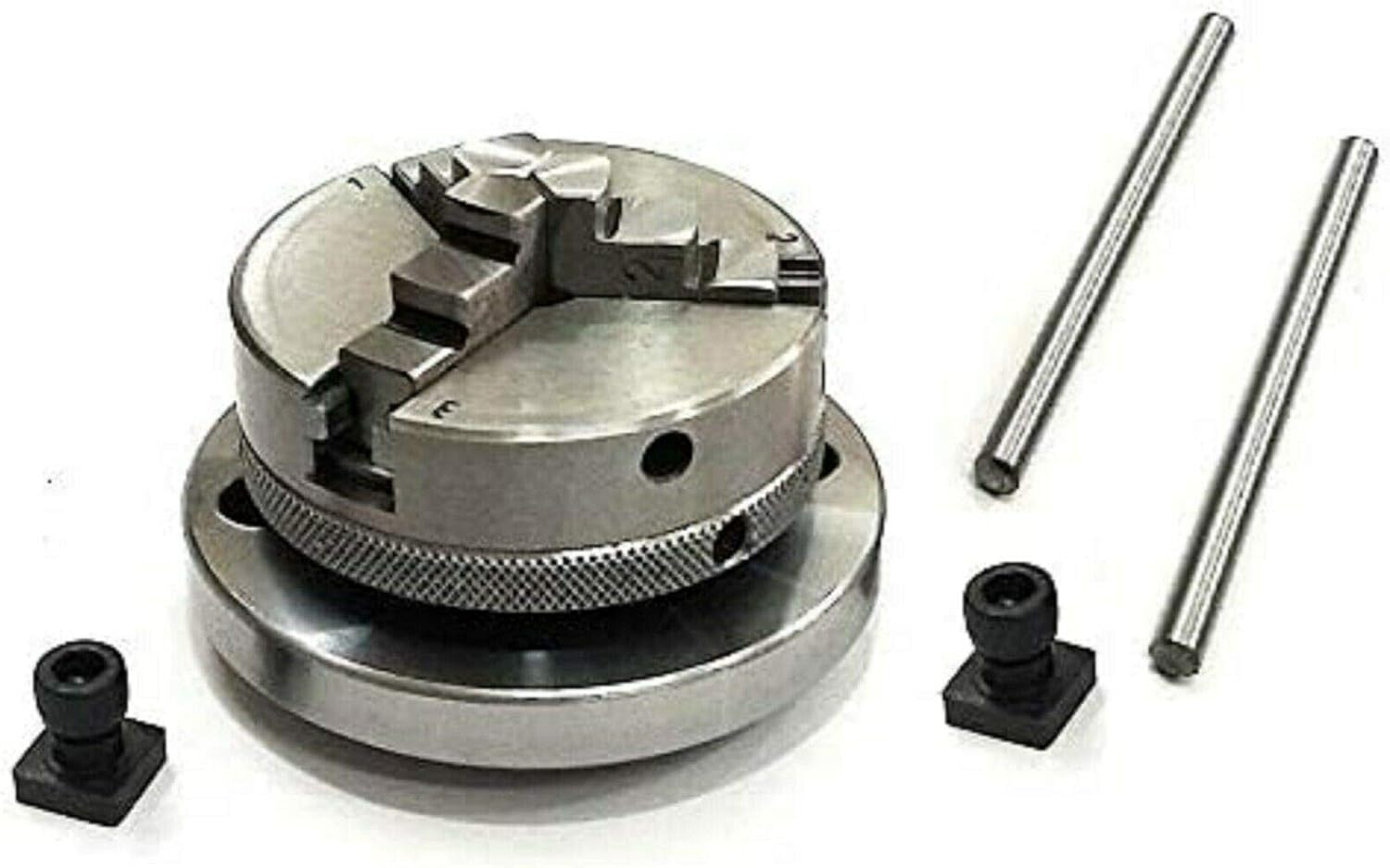

•Chuck 65 mm 3 Jaw Self Centering Precision 65mm 3-Jaw Self-Centering Lathe Chuck Compatible with M14 x 1 mm threading
