esp32 s3 18inch knob touch display dev board supports smartp P | Shop The World
From USA
NewWonrabai

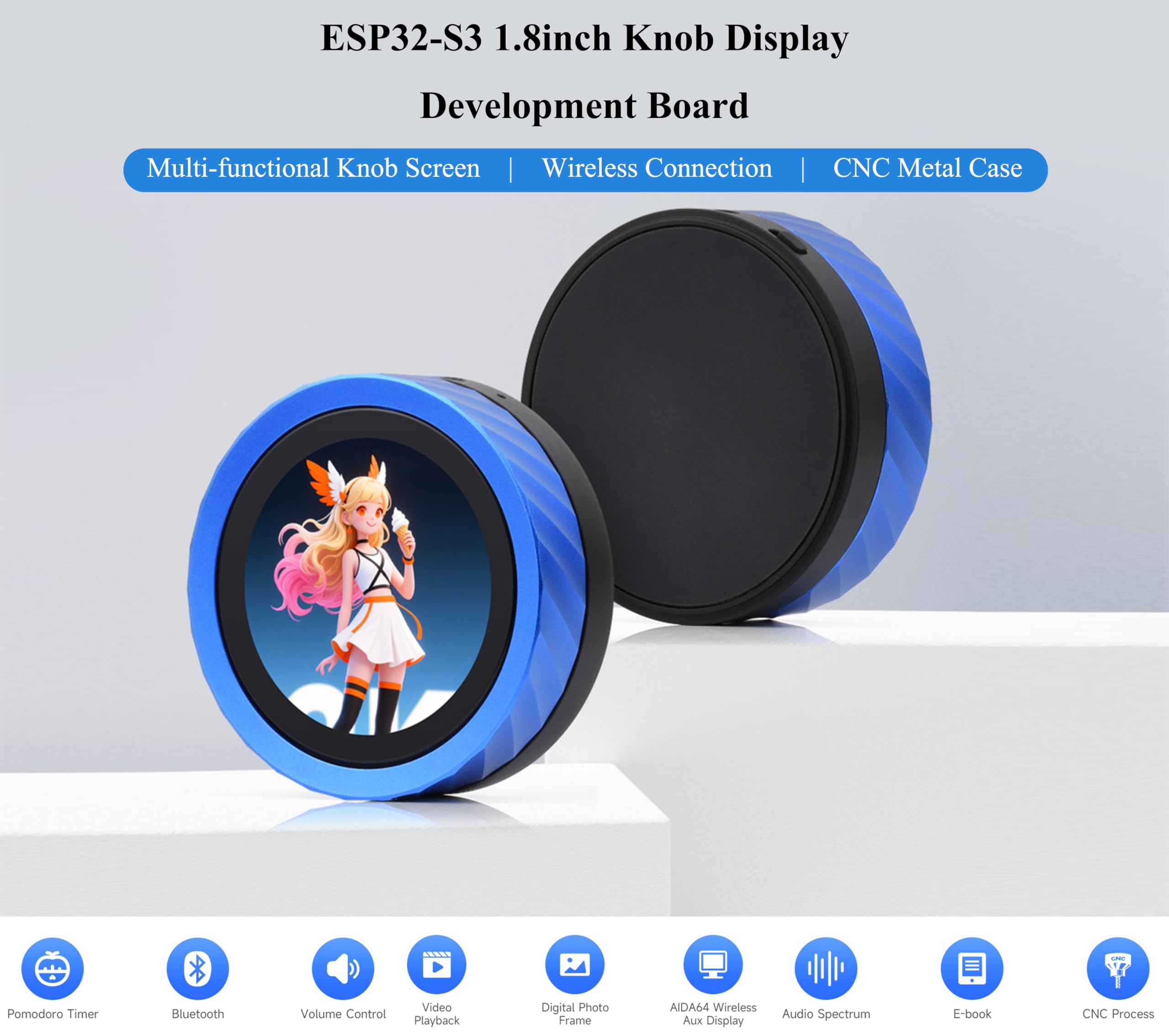

ESP32-S3 1.8inch Knob Touch Display Dev Board, Supports Smartphone Bluetooth Connection for Music Playback,PC Volume Control,PC Secondary Screen,Monitoring Data, Multi-Functional Knob Screen, No BAT
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

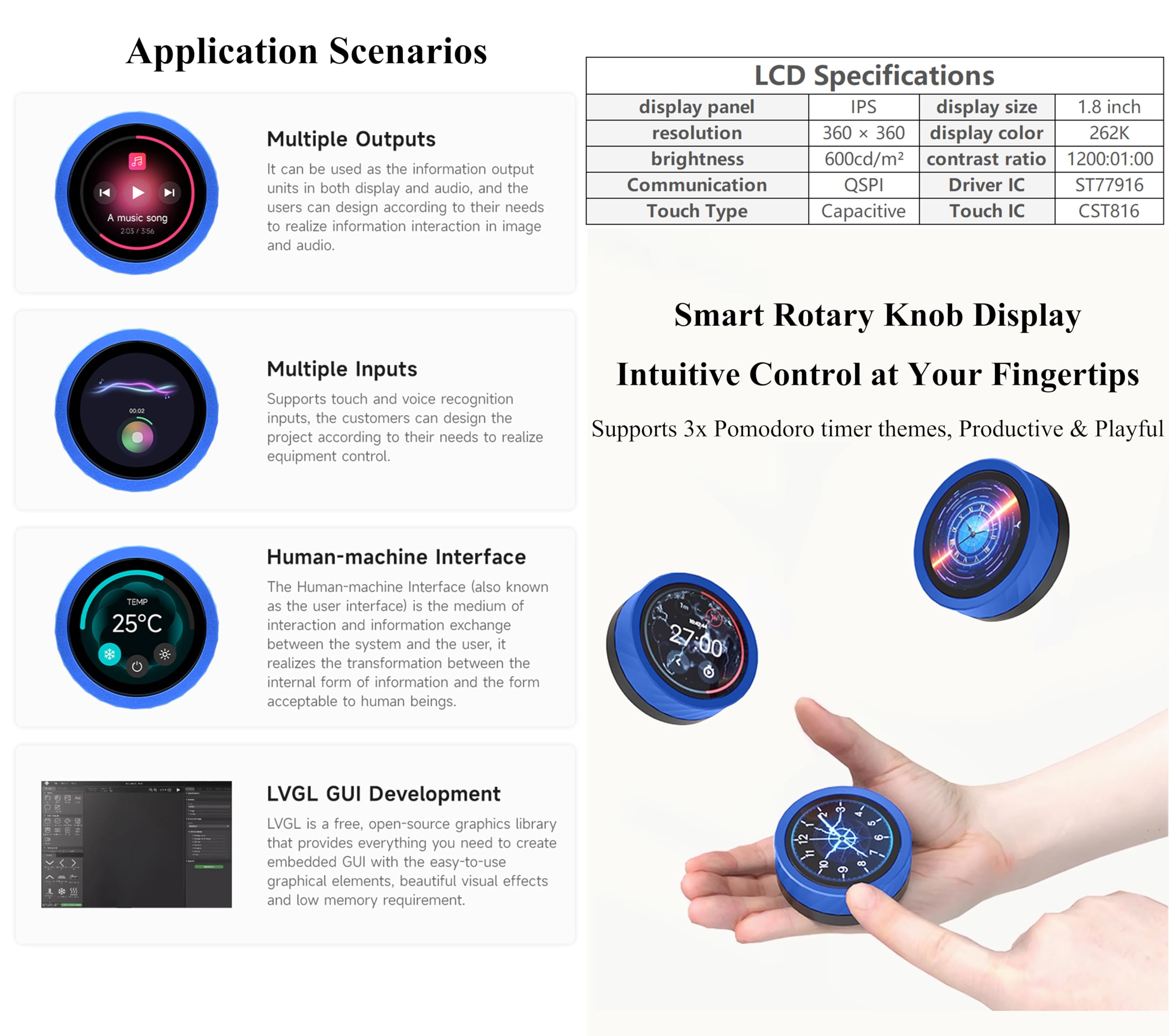

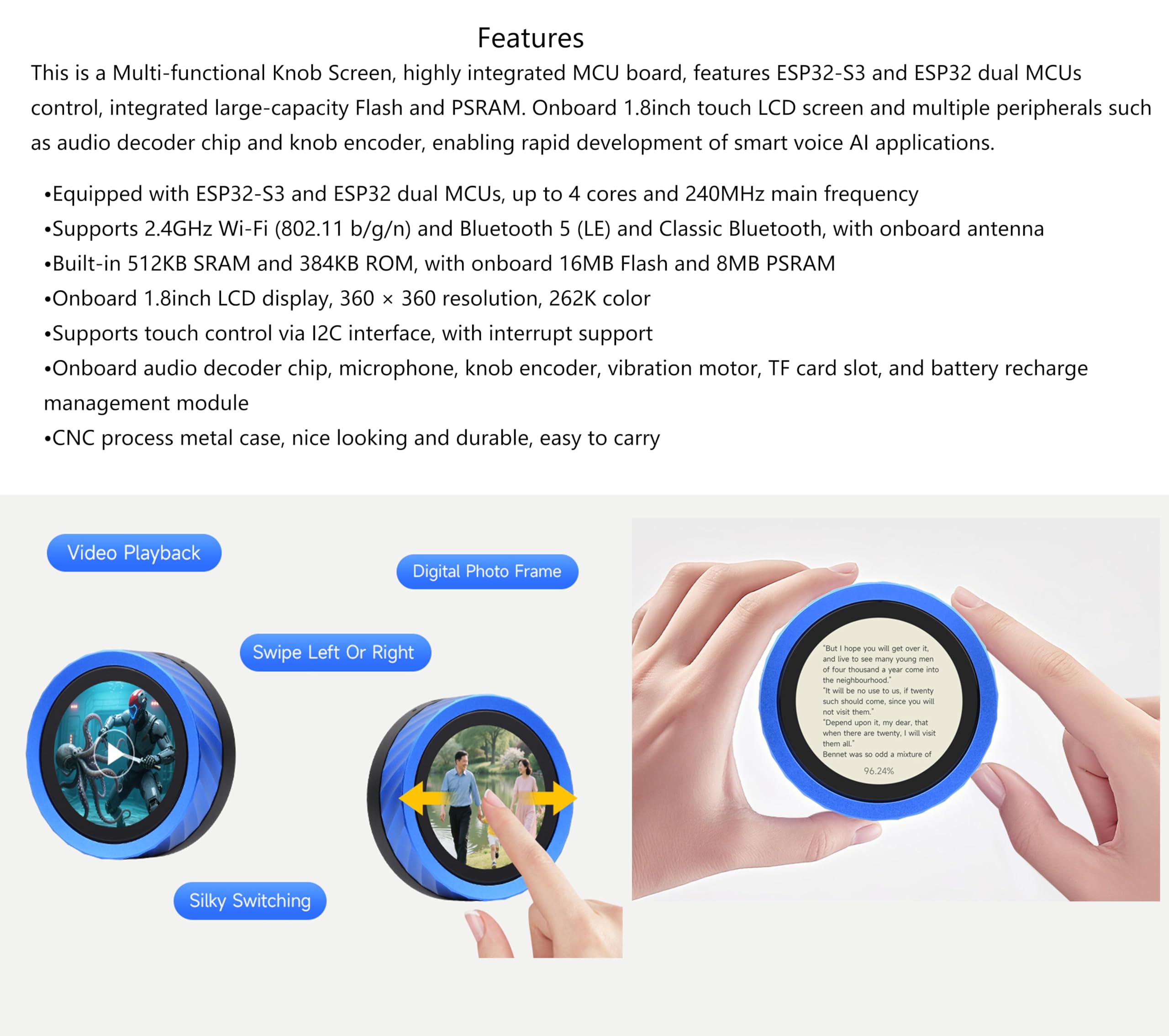

•It is a highly integrated MCU board, features ESP32-S3 and ESP32 dual MCUs control (up to 4 cores and 240MHz main frequency), integrated large-capacity Flash and PSRAM. Onboard 1.8inch Capacitive Touch LCD IPS screen (360 x 360 resolution, 262K color) and multiple peripherals such as audio decoder chip and knob encoder, enabling rapid development of smart voice AI applications.
•Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) and Classic Bluetooth, with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.

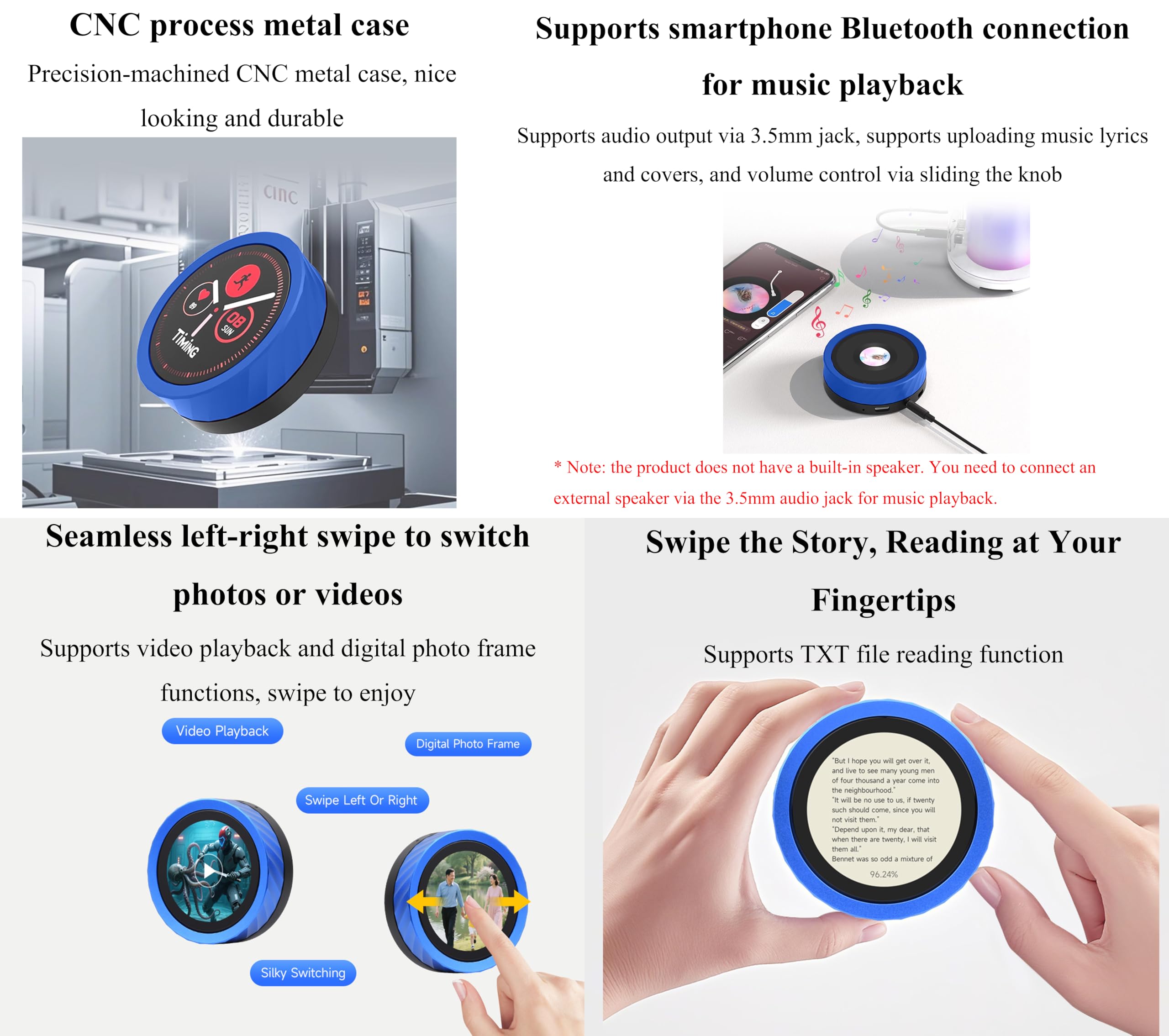

•Supports touch control via I2C interface, with interrupt support. Onboard audio decoder chip, microphone, knob encoder, vibration motor, TF card slot, and battery recharge management module. CNC process metal case, nice looking and dur able, easy to carry.
•Smart Rotary Knob Display Intuitive Control at Your Fingertips: Supports 3x Pomodoro timer themes, Productive & Playful. Supports smartphone Bluetooth connection for music playback: Supports audio output via 3.5mm jack, supports uploading music lyrics and covers, and volume control via sliding the knob.
•Seamless left-right swipe to switch photos or videos: Supports video playback and digital photo frame functions, swipe to enjoy. Swipe the Story, Reading at Your Fingertips: Supports TXT file reading function.
•Used as a PC Secondary Screen: Supports CPU and GPU parameters display for real-time data monitoring. PC Bluetooth connection for volume control: Enables smooth volume adjustment of movies and music via the knob.
•Real-time Audio Visualization: The MIC will capture the surrounding sounds and transform them into a real-time spectrum, letting the sound waves on the screen. Easy setup with multiple functions: Supports backlight adjustment via the knob, and easy switching between Chinese / English modes.
•Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/t91xa
