Generic ZhenLoong 5 Bay Hot Swap Hard Drive Disk Cage Module 3.5-inch SATA SSD HDD Rack Cabinet Data Storage with HDD Backplane 6 Gbps for Three 5.25" Optical Drive Position
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Using DH3507, you can convert 3 * 5.25" optical drive to 5 * 3.5"/2.5" hard drive bay. Transportation cycle of approximately 15-20 days.
•The internal interface of the DH3507 module supports inserting SATA or SAS hard drives. If you want to use a SAS hard drive, you also need a SAS card to connect the module. The module is configured with a straight through backplane, without chips, and does not have the ability to recognize hard drives.

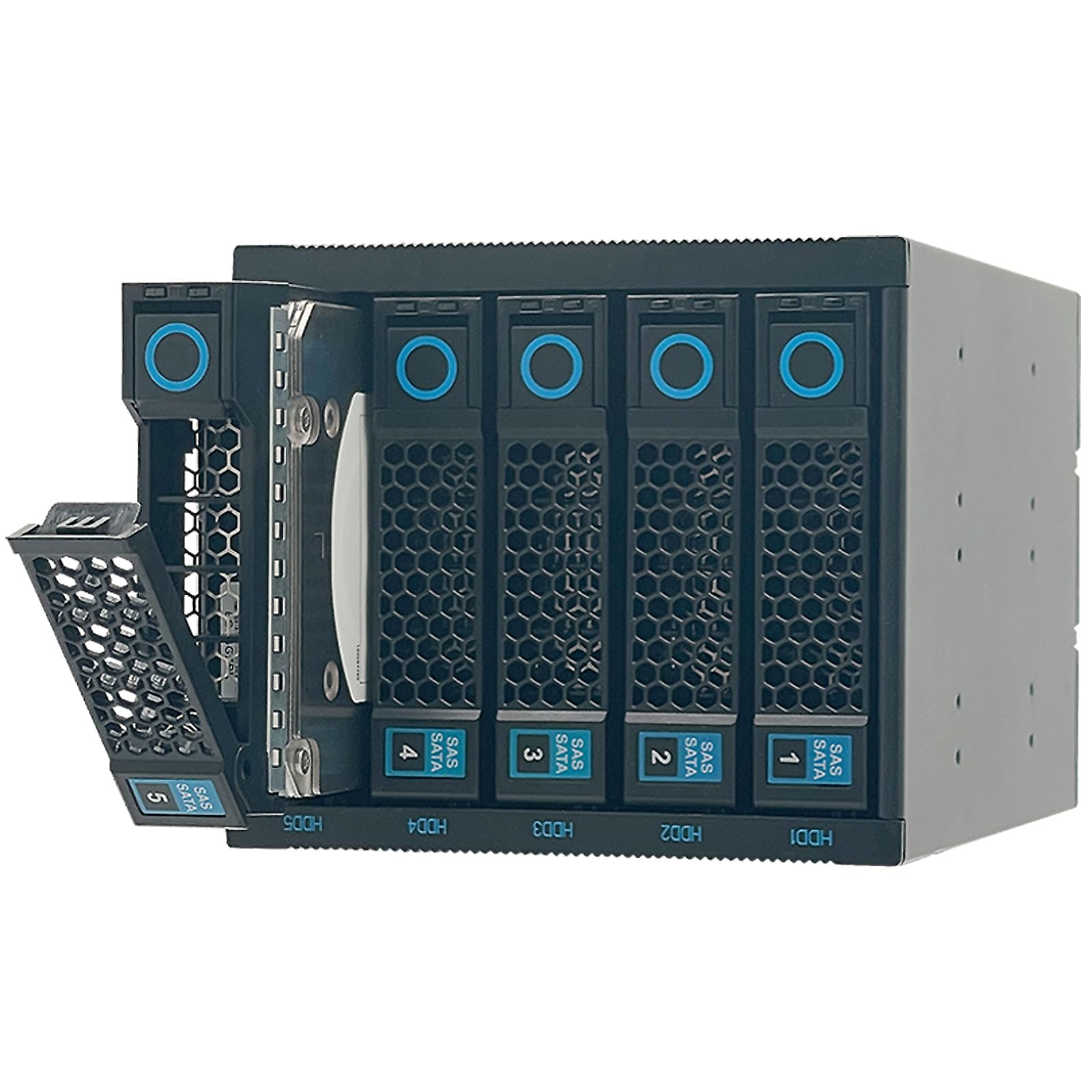

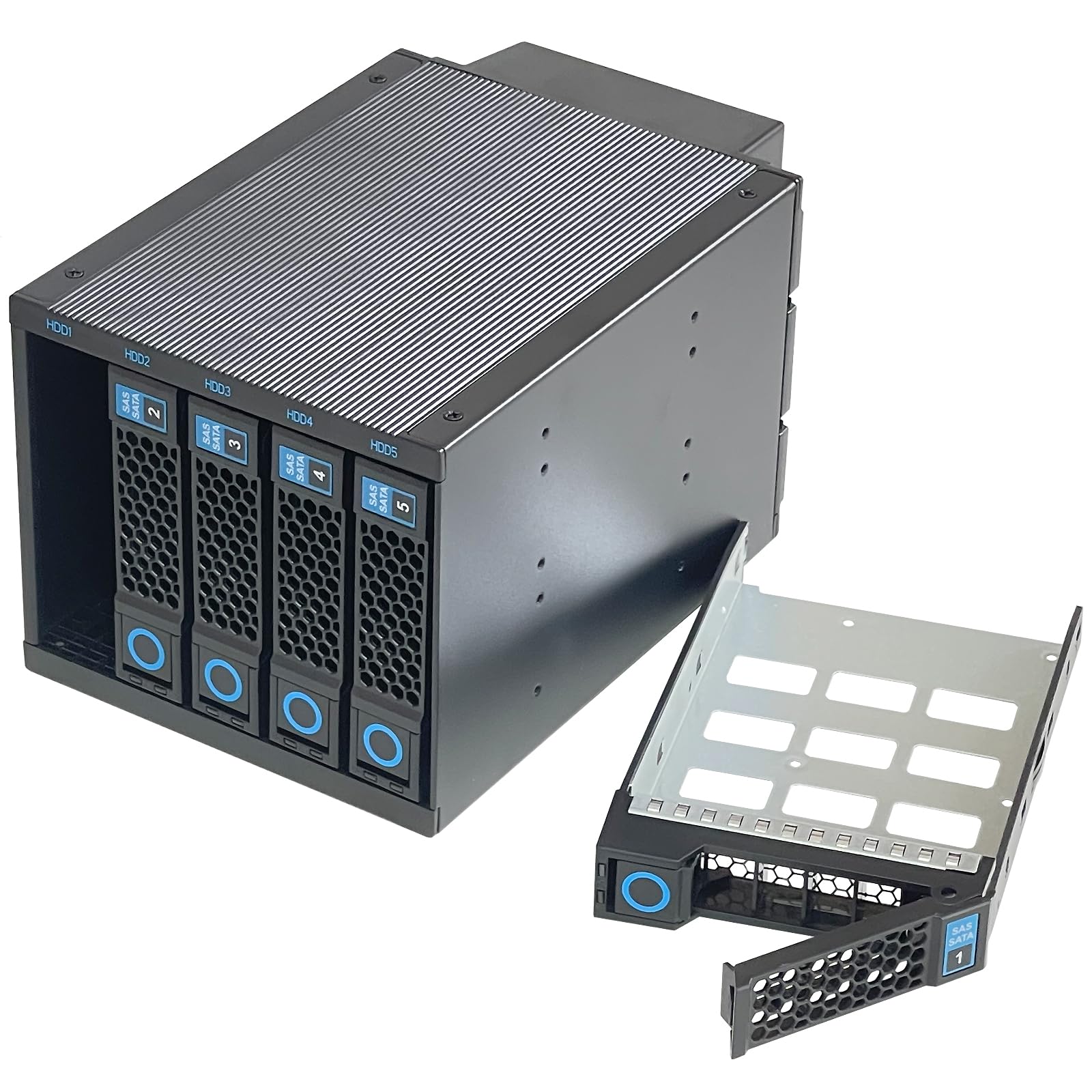

•Each hard drive is installed in a drawer style for easy disassembly. One side of the hard drive needs to be secured with screws, while the other side does not.

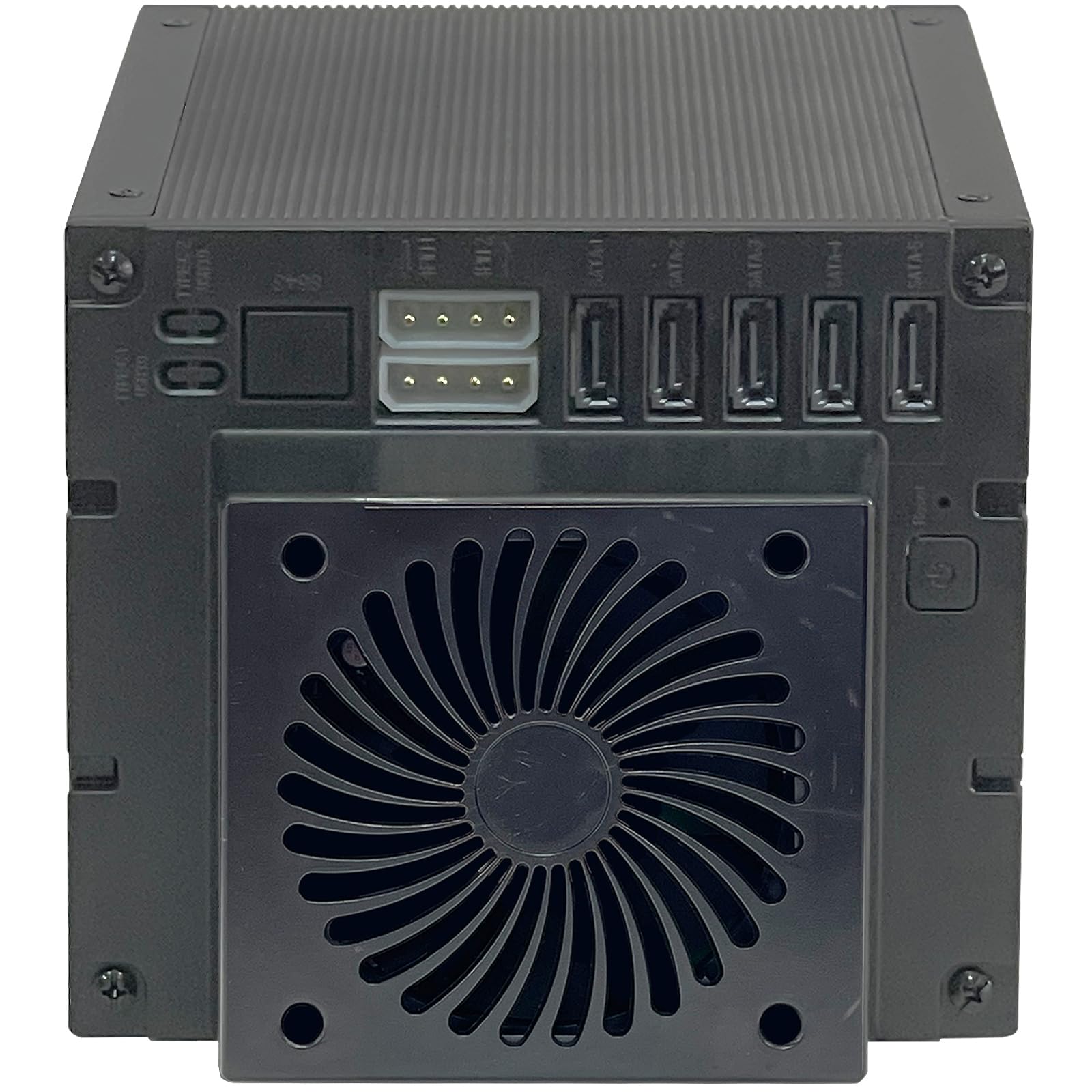

•The hard drive does not require cables, and both the data and power cables are connected to the backplane of the module. To ensure safe hot swapping of hard drives.
•Each hard drive bay has independent indicator lights. They are the power indicator light and the work indicator light of the hard drive, respectively. They are LEDs soldered onto the backplane, which are led out by the light guide tube on the hard drive caddy.
