iPartsleader Internal Loud Speaker Ringer Buzzer Replacement for Apple AirPods Max A2096 (Lightning,2020,EMC 3276) A3184 (USB-C,2024,EMC 8663) (Authentic)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Compatible Models】Do 𝗡𝗼𝘁 𝗙𝗶𝘁 to Other Airpods Model,𝗢𝗡𝗟𝗬 Compatible with AirPods Max A2096 (Lightning,2020,EMC 3276) A3184 (USB-C,2024,EMC 8663)
•【What's Include】1 Piece* Internal Speaker (𝗔𝘂𝘁𝗵𝗲𝗻𝘁𝗶𝗰/Genuine New,Not a 3rd Part Made)
•【Functions & Architecture】The speaker units deliver dual-neodymium ring magnet motor audio and handle crucial acoustic tasks. They work with built-in sensors (optical/position) to toggle Auto-Pause/Play. They generate anti-noise waves for Active Noise Cancellation (ANC) and Transparency modes. Each driver integrates with the ear cup's inward-facing microphones to perform Adaptive EQ, which adjusts sound in real-time based on cushion fit. They also enable Spatial Audio with dynamic head tracking

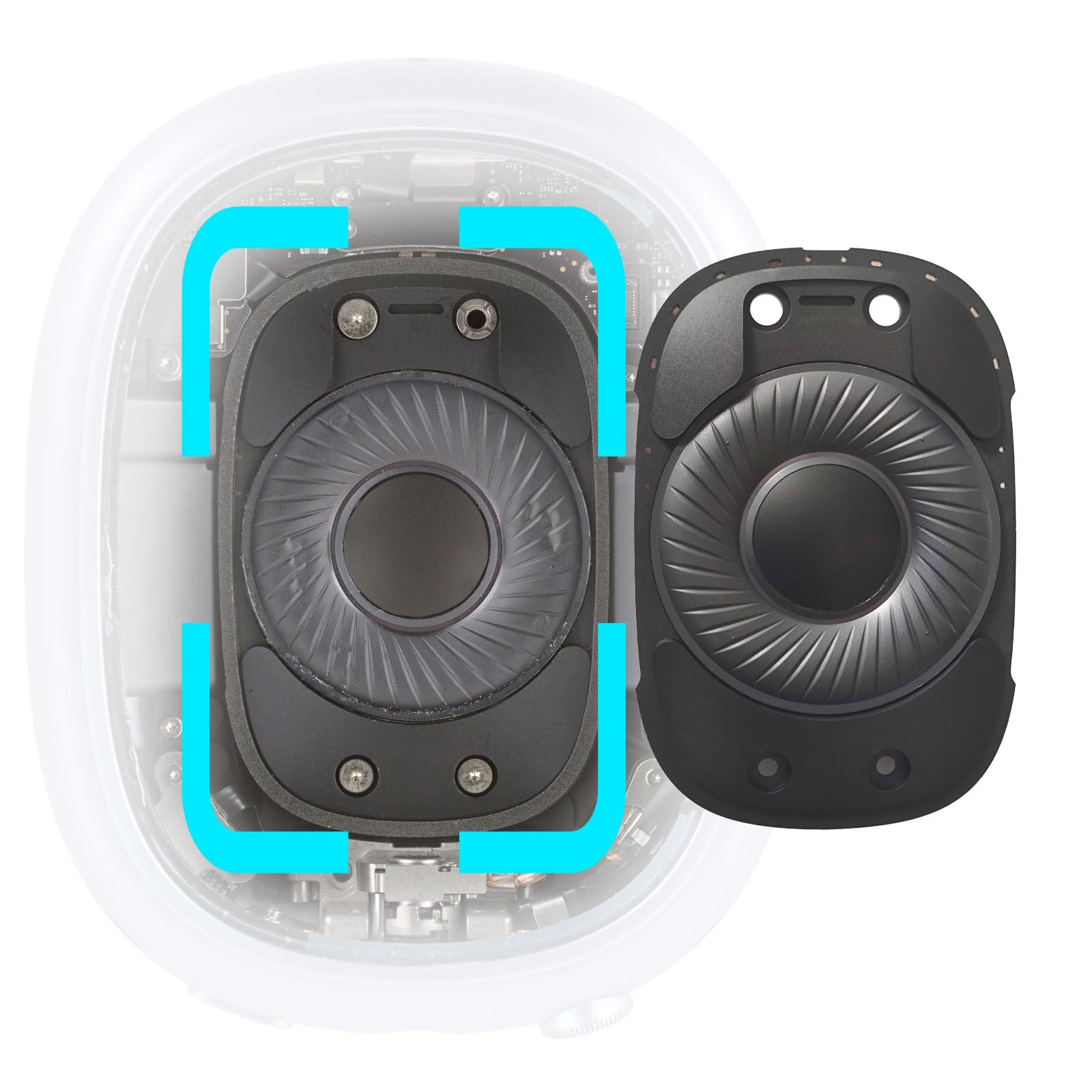

•【Compatibility】The inside speaker drivers (40mm App-le-designed dynamic drivers) are strictly side-specific due to asymmetrical internal screw positioning, cable lengths, and custom alignment pins. However, they are identical across all color variants of the 2020 and 2024 generation (Model A2096/A3184). While the newer 2026 USB-C version shares acoustic traits, mixing components across generations can cause digital handshake issues on the logic board
•【Common Failure】Condensation: Moisture pools inside, shorting pins or logic boards.Ribbon Death: Swiveling cups flat wears out headband cables, causing audio cuts or 3 amber flashes.Distortion: Blown diaphragms cause persistent buzzing or crackling on one side.Gunk: Debris blocks spring contacts linking headband to pods.
•【Repairability】Unlike glued earbuds, the speaker housing uses proprietary Pentalobe locking screws requiring only a 1/4-turn to release. Inside, drivers are secured with Torx screws. However, the speaker magnet is extremely strong and easily sucks screws into the sensitive diaphragm, permanently ruining it. Disassembly requires specialized bits (P5, T1, T3/T4) and a careful prying pattern to detach the light internal adhesives without tearing ribbon cables
•【Pro-Tips for Technicians】SIM Tool: Poke hole above mesh to detach headband. Clean pins with alcohol.No Twist: Avoid rotating cups flat. Keep parallel or use a stand to save ribbon cables.Screw Guard: Cover diaphragm with plastic during repair so screws won't snap to magnet.Dry It: Remove cushions regularly to wipe internal condensation
