MECCANIXITY 4pcs FFC FPC Connector Board 12 Pins 0.5mm Socket to 2.54mm Double Row Male Pin Header Strip Adapter, PCB Converter Board for LCD TVs/Digital Cameras/Laptops
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•FFC/FPC Connectors are used to connect flexible cables or flexible printed circuit boards in electronic equipment, to provide reliable electrical connection and mechanical fixation, and are suitable for applications requiring high flexibility and compact design. Mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics, and other areas, such as digital cameras, laptops, MP345, game consoles, etc.

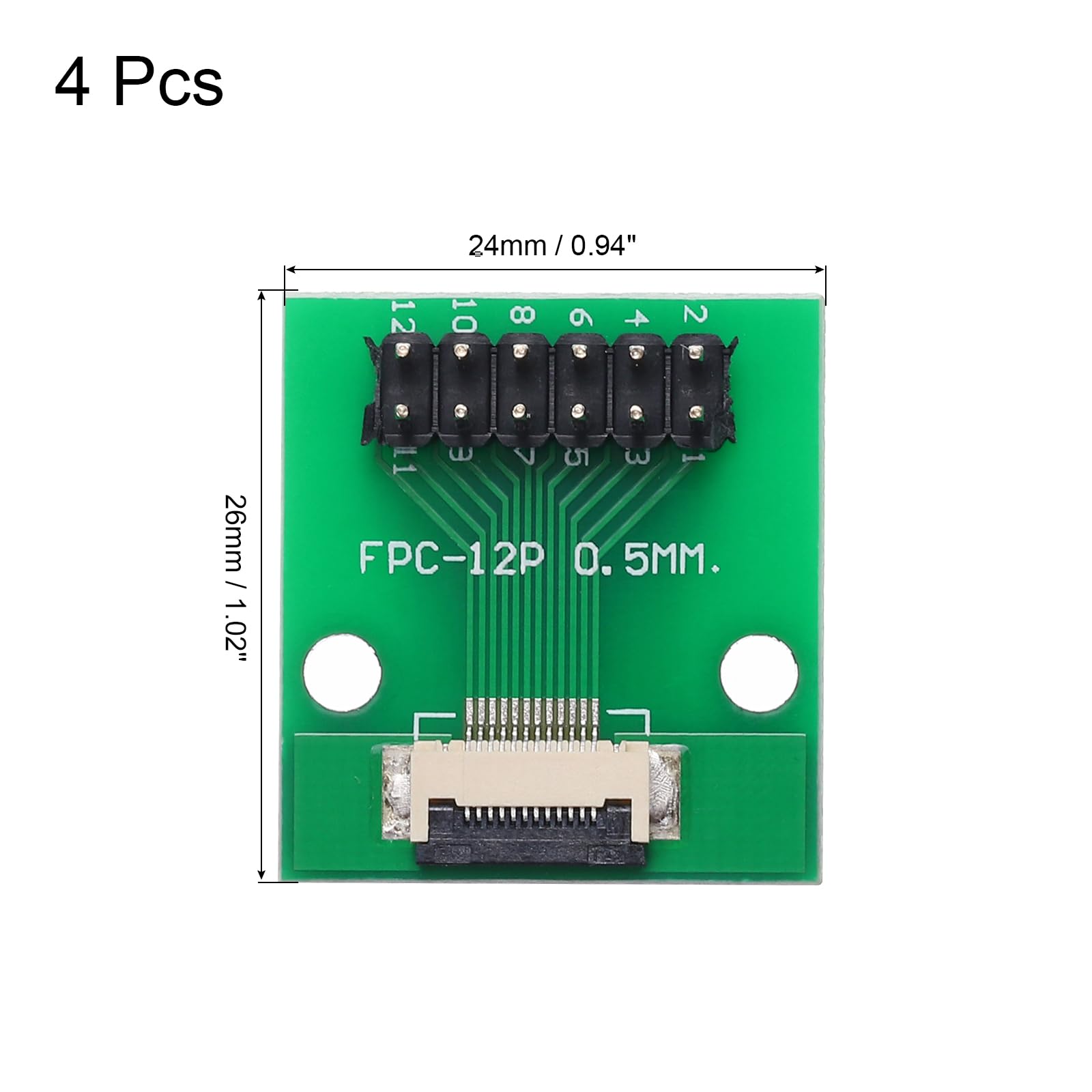

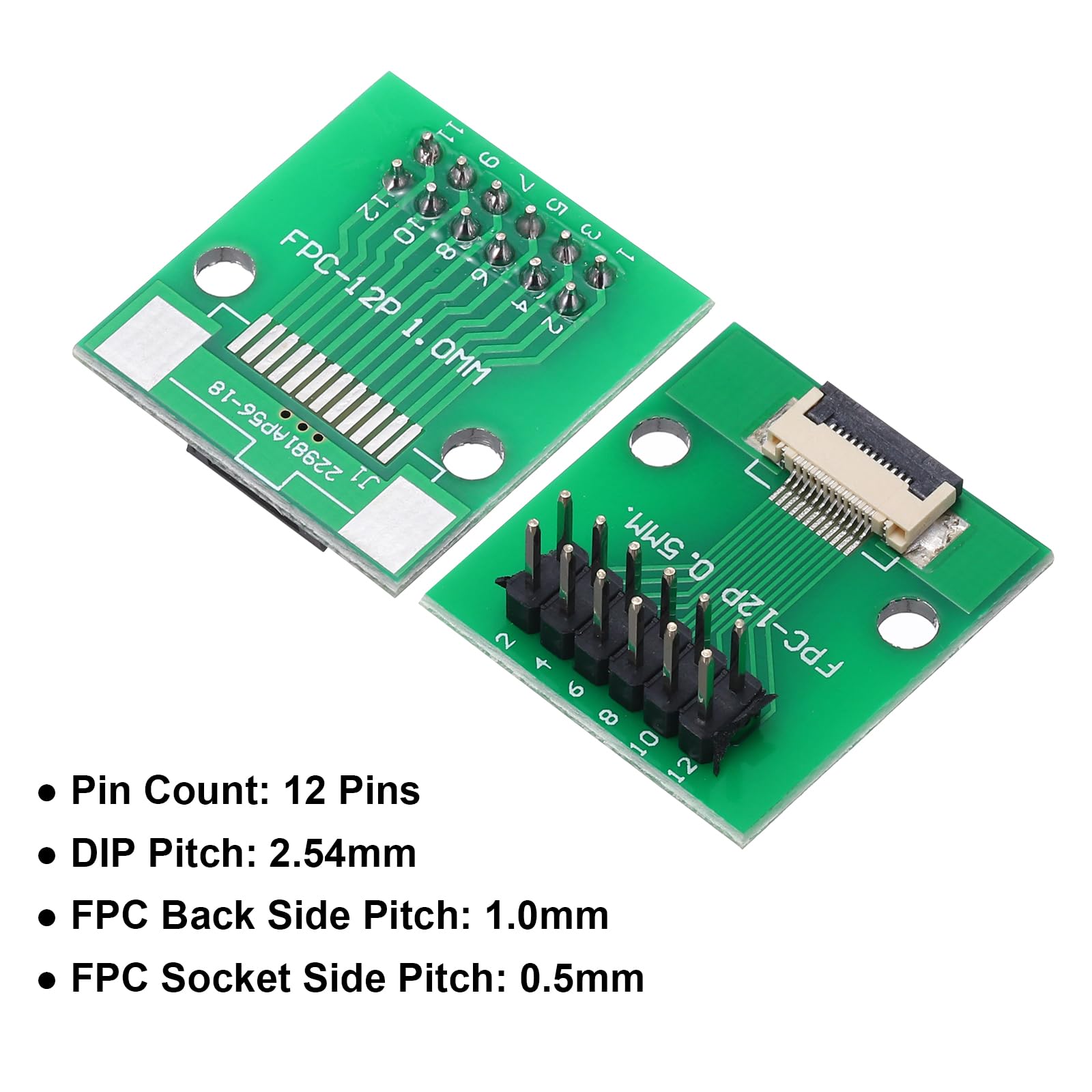

•Double Sided with Single Flat Cable Socket; Product Type: PCB Support; Pin Count: 12 Pins; FPC Socket Side Pitch: 0.5mm; FPC Back Side Pitch: 1.0mm; DIP Pitch: 2.54mm; Overall Size: 26 x 24mm / 1.02 x 0.94 Inch(L*W)
•1. It usually has the characteristics of low insertion force and a high rate number of insertion and extraction. 2. It can provide high-density signal transmission and circuit connection in a limited space.
•1. Flip-up the black interface ; 2.Insert into your flat cable(here is not included); 3.Test to finish.
