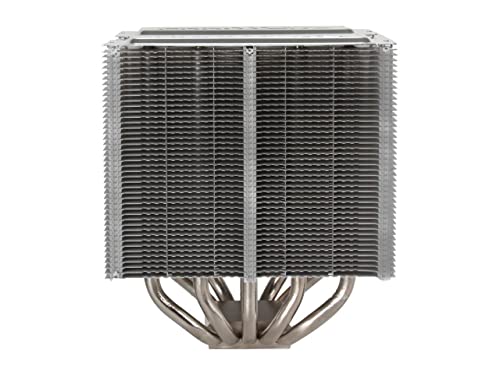

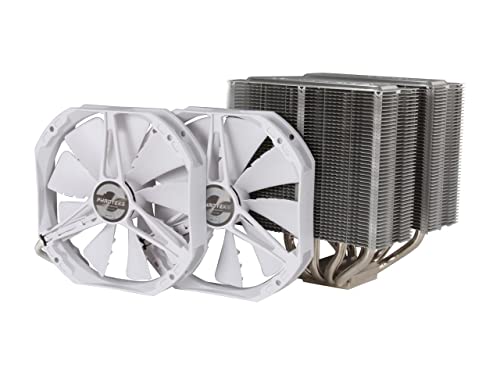

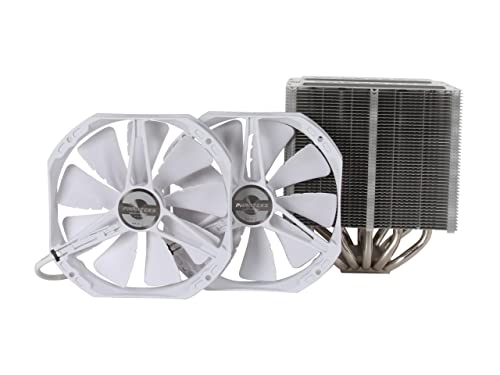

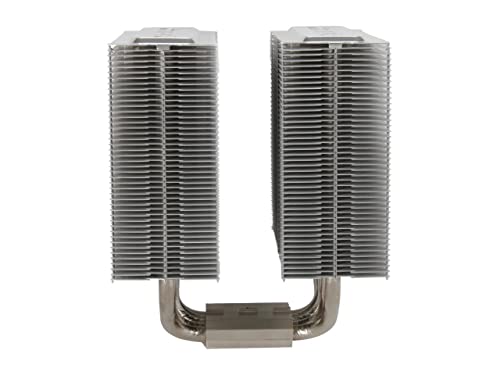

PHANTEKS PH-TC14PE 5x?8mm Dual Heat-Pipes Dual 140mm Premium Fans and Quiet CPU Cooler with patented P.A.T.S coating
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Material: Copper (Base and 5xψ8mm Heat-pipes),Nickel Plated. Alum. with Patented P.A.T.S. and Patented C.P.S.C Technology. Fan Model: PH-F140 Premium Fan. Fan Size: 140x140x2,Dual Fans include. Fan Compatibility: 140x140x25mm x3pcs, (120x120x25mm x 3pcs).
•Bearing Type : UFB bearing ( Updraft Floating Balance bearing ). Blade Geometry : 9 White colored Blades with MVB ( Maelström Vortex Booster) Design. RPM : 1200 RPM ± 10%. RPM with Q.S.A: 900 RPM ± 10%.
•Max Air Flow: 78.1 CFM. Max Air Flow with QSA: 60.1 CFM. Max Air Pressure: 1.21 mm H2O. Max Air Pressure with QSA: 0.69 mm H2O. Acoustical Noise : 19 dBA. Acoustical Noise with Q.S.A : 15.2 dBA.
•Input Power : 1.8W. Current (Ampere): 0.15A. Rate Voltage : 12V. MTBF > 150,000 hr.
•Heat sink Dimension (LxWxH) without fan: 134*140*160mm. Heat sink Dimension (LxWxH) with Dual Fans: 159*140*17mm. Heat sink Weight without fan: 970g. Heat sink Weight with fan: 1100/1250g (single/Dual) Fan. Package Dimension : 167x214x190mm (LxWxH).
•Features : -Patented. P.A.T.S (Physical Antioxidant Thermal Shield) will greatly increase the cooling performance and reliability while deflecting other thermal radiation from other heat sources, such as the GPU, South Bridge, North Bridge, etc. P.A.T.S, ran at a long period, will display significantly better results in an enclosure, closed environment, than a tech station, open environment. In extreme conditions, PATS is able to withstand temperatures of up to 200 degrees Celcius. P.A.T.S is environmental friendly and non-toxic.-Patented. C.P.S.C (Cold Plasma Spraying Coating Technology) is a brand new technologic forming deposit that displaces heat onto corresponding metals at a quicker rate. With this technology, the Phanteks PH-TC14PE enhances thermal conductivity on the soldered surfaces of the heat-pipes through the copper deposits.-Designed with dual tower radiators; the PH-TC14PE has five ψ8mm heat-pipes linearly aligned to ensure optimal cooling. This cooler is made to have the least amount of air and thermal resistance.
•Phanteks PH-F140 premium 140mm fans uses Updraft Floating Balance (U.F.B) bearing, nine Maelstrom Vortex Booster (M.V.B) blades, and Maelstrom Air-Fort Optimization (M.A.F.O) drive system to achieve massive airflow and perfect dynamic balance. to reduce noise level, the fan emits a low dBA with the support of the anti-acoustic rubber-pad and rubber-bar to help eliminate vibration.-The SoliSku universal mounting kit provides an easy-to-install rotational back plate for Intel LGA 2011/1155/1156/11366/775. AMD AM2/AM2+/AM3/3+/FM 1 ( stock back plate required ). -The PH-NDC is a superb quality thermal compound for heat sinks. It is made of high-purity nano diamond like particles to improve the thermal conductance between components. The generated heat caused by the CPU will transfer to the heatsink, without reduction in efficiency and resistance.
