Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server, 2Gbit 256MB DDR3 RISC-V Linux Development Board, 1TOPS NPU 1GHz C906 RISC-V CPU, USB HDMI 100M Network Port (NanoKVM Lite SBC)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

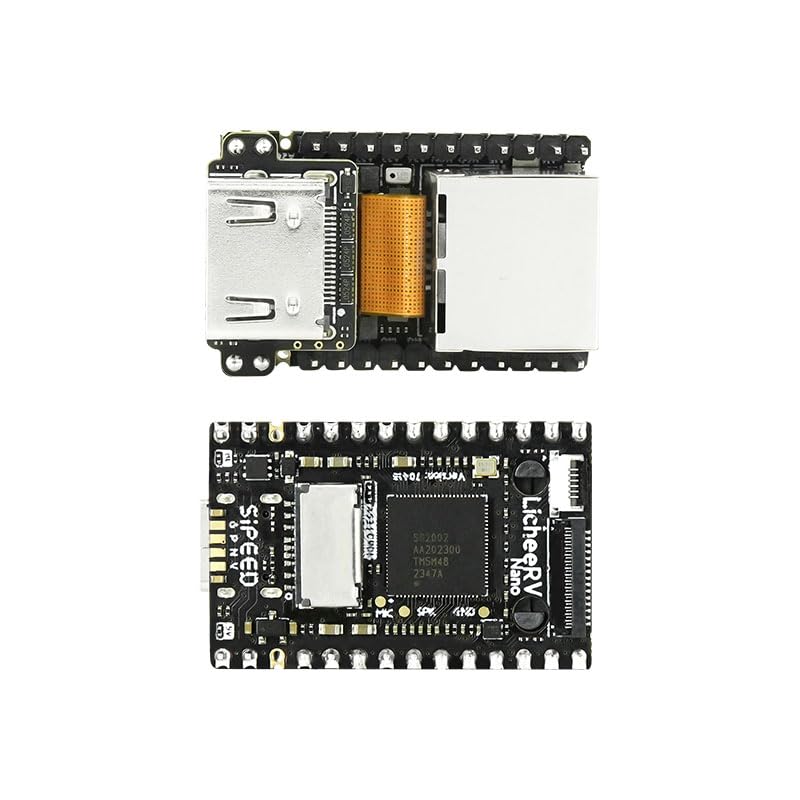

•[Remote Control O&M Server] Sipeed Lichee NanoKVM Cube IP-KVM Mini Remote Control Operations and Maintenance Server is an IP-KVM product based on LicheeRV Nano RISC-V Linux Single Board Computer, which inherits the extreme size and powerful functions of LicheeRV Nano. It supports MJPEG, H264(WIP) video encoding, 1080P 60fps resolution, 90~230ms video latency, 100M/10M Ethernet on board, Size: 40x36x36mm.
•[Multi-function Interface] Sipeed Lichee NanoKVM Cube IP-KVM RISC-V Linux Remote Control Operations Server includes an HDMI input port, which can be recognized by the computer as a monitor to capture the computer's screen; and a USB2.0 port to connect to the host computer, which can be recognized as a HID device such as a keyboard, a mouse and a touchpad. At the same time, using the extra storage space of TF card, it can be mounted as a USB flash drive device.
•[Support 100M/10M Hundred Gigabit Ethernet] Sipeed Lichee NanoKVM Cube IP-KVM RISC-V Linux Development Board comes standard with a 100M Ethernet port for network transmission of video, control signals, etc. The NanoKVM IP-KVM RISC-V Linux Development Board comes with a 100M Ethernet port as standard. In addition, the Full version also comes with an ATX power control port (USB-C form factor) for remote control and host switching status, and an OLED display underneath the Full version's casing for displaying local IP and KVM-related status.
•[Server Management Support] Sipeed NanoKVM Cube IP-KVM Maintenance Server can be used to monitor servers in real time, get the running status of servers and control them. Support remote desktop, switching machine: NanoKVM gets rid of the limitations that the host computer must be connected to the Internet and the system software, and can be used as the external hardware of the host computer to provide the function of remote control directly.
•[Support Remote Mounting] Sipeed NanoKVM Cube IP-KVM Kit supports analog USB flash drive device, can be mounted on the installation image to install the system, you can also enter the BIOS on the computer setup; support for remote serial port (Full beta version does not lead to the interface): NanoKVM leads to two sets of serial ports, which can be used with the IPMI, or connected to other boards to use the web page serial terminal interaction, in addition to the user can expand their own! In addition, users can expand their own accessories.
•[Meet the different needs of users] Sipeed NanoKVM Cube IP-KVM remote control server currently provides two versions: NanoKVM Lite is the basic version of the configuration, suitable for individual users with a certain degree of DIY ability and batch demand for enterprise users; NanoKVM Full is the full version of the configuration, with exquisite shell and complete accessories, built-in bootable system image card, recommended for individual users.
•[Wiki] Getting Start: "wiki.sipeed.com/hardware/en/kvm/NanoKVM/quick_start.html". Datesheet SDK Document download please click "WayPonDEV" store and ask the question. All after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
